Wholesale 10pcs/lot Micro D1M 1CH HD FPV DVR Works with CCTV ANALOG camera 1ch super micro SD DVR support 32GB TF card
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
Factory direct sales, OEM support

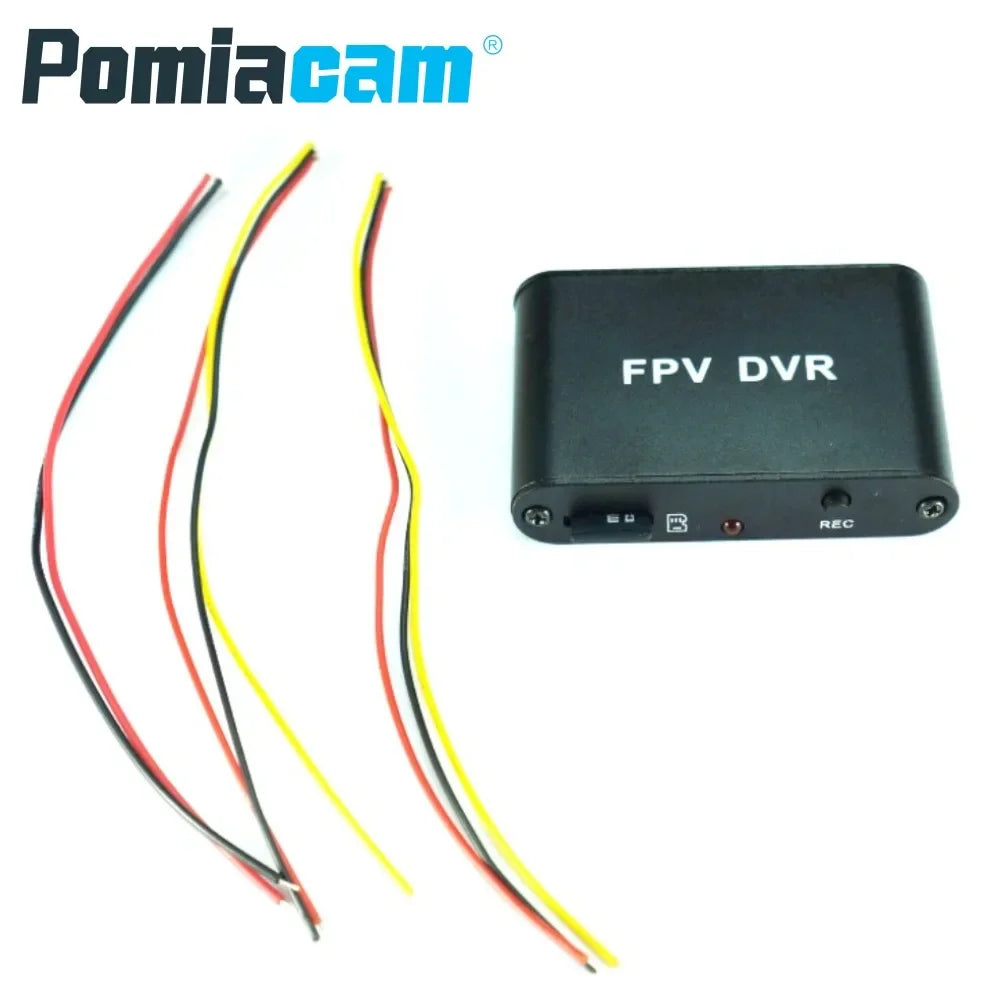

Micro D1M 1CH HD FPV DVR Works with CCTV ANALOG camera 1ch super micro SD DVR support 32GB TF card
Kindly pls note no sd card and no camera included in the package!
Product description
This is a micro size 1 channel SD DVR, it works with normal CCTV ANALOG camera, and support Max. 32GB micro SD card. DVR start recording once DVR be powered on. Press the "Rec." button, DVR will stop recording, press it again, DVR will restart recording.
Main Features
Specifications
|
Item |
Data |
|
Power input |
5V-15V |
|
TV Mode |
PAL/NTSC optional |
|
Recording mode |
Power up |
|
Resolution |
HD(1280X720),D1(720X480),VGA(640X480) |
|
Frequency |
50HZ/60HZ |
|
Video Compression |
MJPEG |
|
Audio compression |
128Kbps PCM |
|
Video format |
AVI |
|
Audio format |
MP3 |
|
Frame |
30f/s |
|
Memory |
Max. 32GB TF card |
|
Power consumption |
0.8w |
|

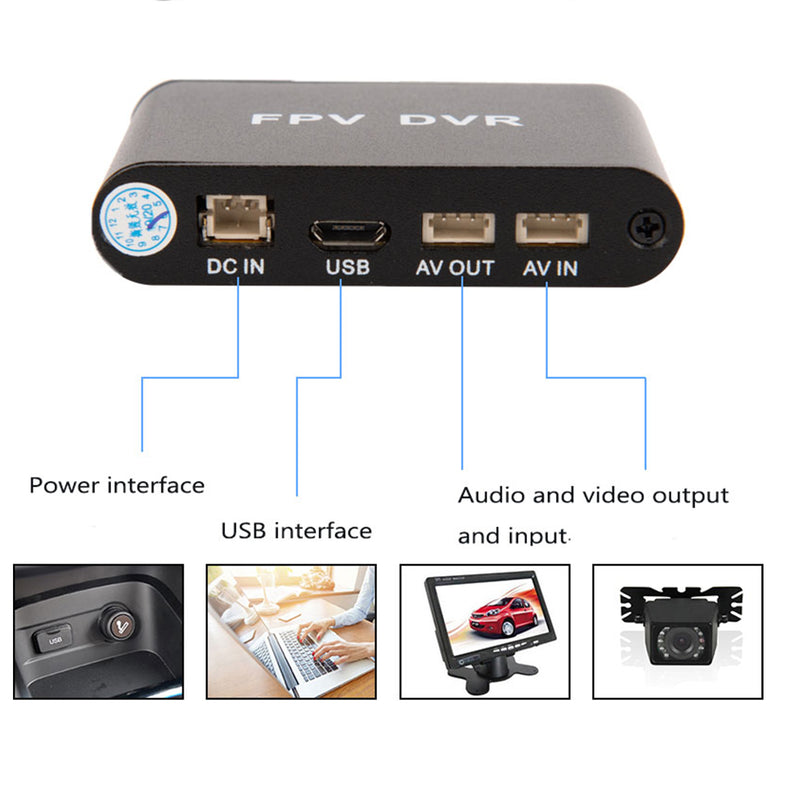

USB port |
File transmit / Power input |
|
DVR dimension |
56mmx38mm |
|
DVR weight |
10G |
